TYPE OF KELLY BARS
learn morn
According to the way of crowding, Kelly bars consist of four types:

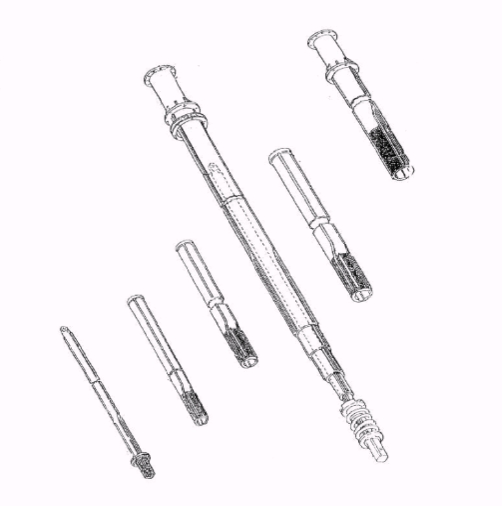

1. Friction Kelly bars
Every single element consists of a tube with weld-on stepless ribs. The downward thrust is transmitted by friction. The No. of ribs can be three or six.

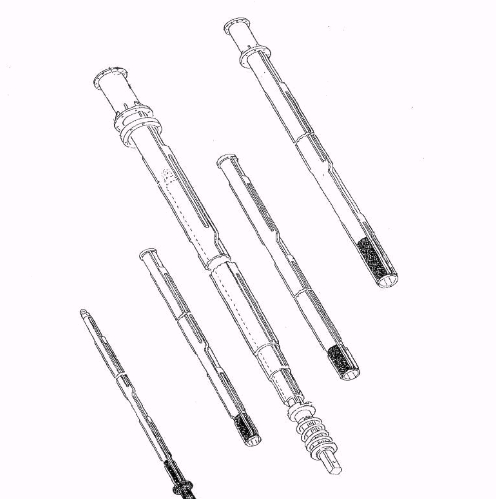

2.Inter- Locking Kelly bars
Every single element consists of a tube with weld-on ribs with steps set at a variable distance related to the stroke of the pull-down cylinder. The downward thrust from the pull-down cylinder is transmitted by mechanical locking.
3. Multi-locking Kelly bars
Every single element consists of a tube with weld-on ribs with continuous steps. The downward thrust from the pull-down cylinder is transmitted by mechanical locking.
4. Partial-locking Type
3 or 1 outer elements are of locking type; 2 inner sections are of friction type.

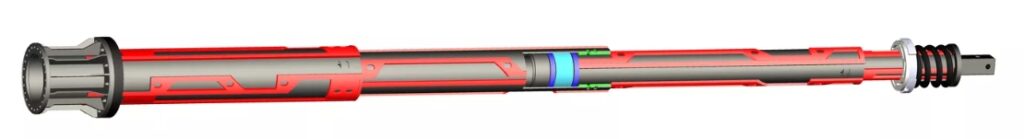

Main Structure of Kelly Bar
learn more

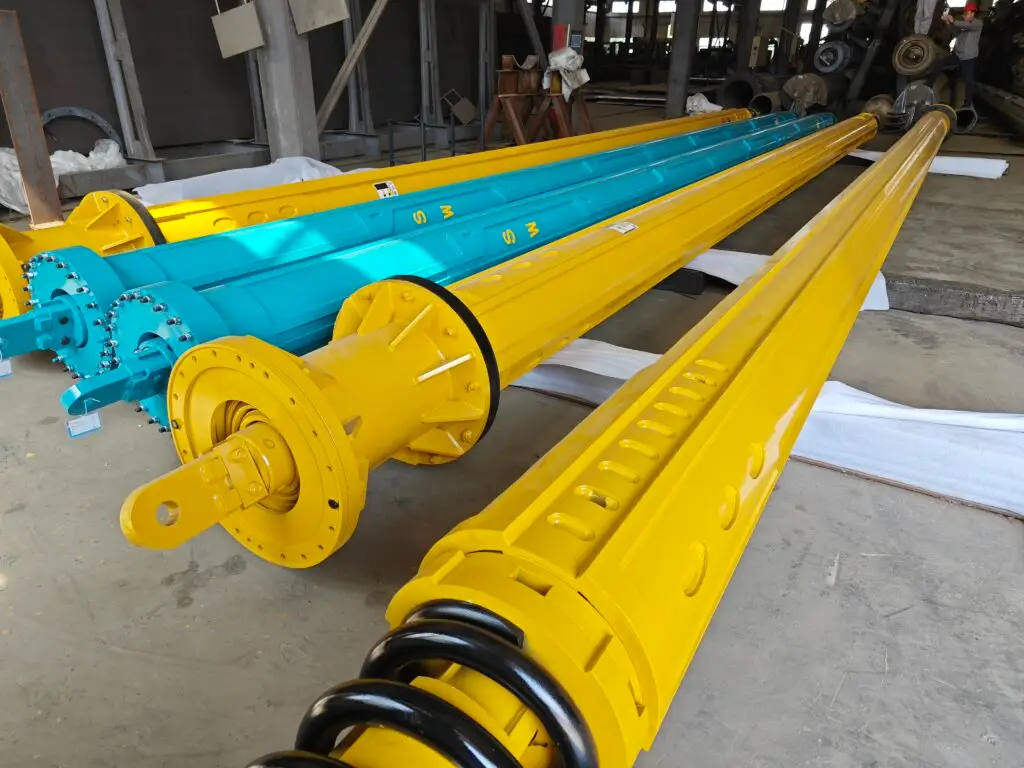

Features of SW Kelly bar
●Designed according to advanced Modular-element principle with six ribs laid on tubes.
●The advantages of our Kelly bar, such as low weight, high strength,high abrasion-resistance, high-reliablity are safeguarded technologically by superior process, advanced machining equipments and special fixtures.
●All Kelly bars are available in interlocking, friction and partially lockable version. Length, Kelly stub and Kelly eye’s dimensiorcan be on request.
●Complete model series and fexible design and manufacture ensure the abiity to supply Kelly bar to matched with any model of drilling rigs.
●Take use of seamless alloy tube imported from Germany Mannesmann or locally-made. Special hot-treatment enhances the material’s strength more than 850Mpa.
●Ribs made of alloy hot-treated specially enjoys both high hardness and perfect welding performance, high abrasion-resistanceleads to high-reliability.
●Several service centers and rich experience of repairing Kelly bars on jobsite or in workshop benefit customers to enjoy rapid service.
